PAE-11

SYX MOTO CUB Electric Mini Dirt QUAD

350W 24V Kids Four-Wheeler Mini ATV Off Road Ride On

Regular price $549.00 USD
Regular price $990.00 USD Sale price $549.00 USD
Sale Sold out
Shipping calculated at checkout.
Color

Taxes and shipping calculated at checkout

IMPORTANT - Please provide us with the most up-to-date, accurate and detailed shipping information with your phone number. If the item is returned because it was not deliverable due to an incorrect address or unanswered phone call, the customer will be responsible for both the shipping and return charges.
⭐⭐⭐⭐⭐
🎯 Accessories 30-day no-risk return policy
⭐ 99% reviewers recommend this product
💯 100% Satisfaction Guaranteed
💯 Parts Warranty
  • ATV Power & Speed: Speed up to 7.7 Mph(12.4 km/h) and provides up to 3.3 miles(5.3km) of continuous use on a single charge.
  • QUAD Off-Road Adventure: Strong and sturdy enough for off-road use. Max limp angle 30°, suitable for various grounds. With powerful driving motor and bright LED light, this ATV will offer your child an exciting driving experience. Adjustable front wheels add more fun.
  • Safety First: Hand-operated rear brake and one-button start design for enough convenience and safety. Super easy operation frees your kids from tiring learning. Safe speed makes everything under control.
  • Fast-charging ATV Battery: It only takes 8 hours for the battery to be full charged. Remove the long-lasting 24V battery and connect it to the included charger to rev it back up for another ride session!
  • Eco-Friendly and Silent Electric ATV: Rechargeable battery, zero pollution. Silent move to avoid disturbing your neighbors.
  • ATV Recommend Rider: Minimum rider age: 8. Max rider weight: 110lbs(50kg).
  • Owner's Manual Download: https://support.syxmoto.com/support/solutions/articles/66000509488-owner-s-manual-for-pae-11

More Information

Model No.

PAE-11

Specifications

SPECIFICATION OVERVIEWS
Model PAE-11 CUB
Max Power 350W
Top Designed Speed 12.4 KM/H
MOTOR & BATTERY

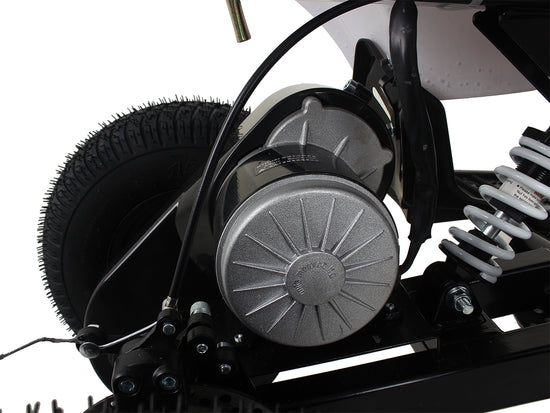

Motor Type MY1016Z
Starting Mode Electric
MAXIMUM SPEED 2650~2950r/min
Rated Voltage 24V
Rated Current 18.7A
Battery 24V/7A
Charging Time 8H
TRANSMISSION
PRIMARY DRIVE SYSTEM Chain
CHASSIS
Frame                  Steel frame
Swing Arm            Steel fork     L=300mm
Axle Base(mm) 680/26.78in
Chain T8F 78L
Sprockets               25/45
BRAKE & SUSPENSIONS
Brake Operation Mode-Front Pull-brake mechanical system
Brake Operation Mode-Rear Pull-brake mechanical system
Shock Absorber-Front /

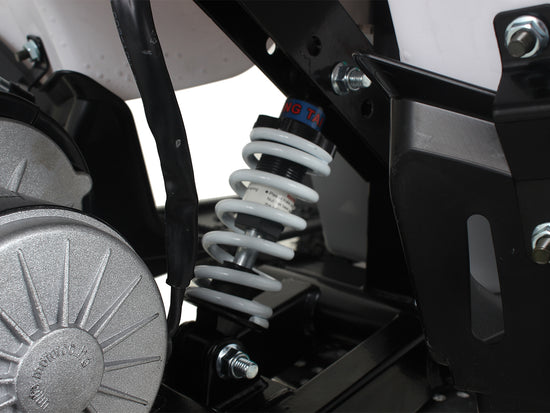

Shock Absorber-Rear Ordinary steel shock L=140

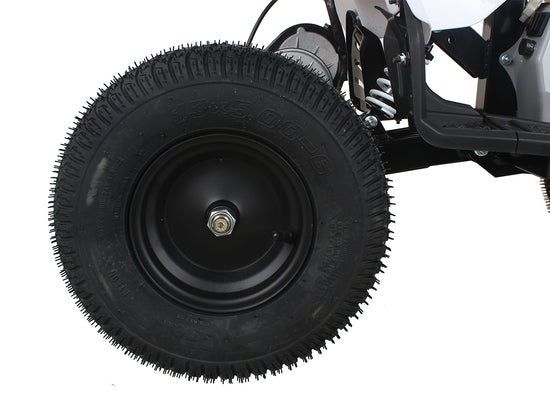

Tyer Type-Front Road tire 13*5.00-6
Tyer Type-Rear Road tire 13*5.00-6
Tyer Pressure-Front 24psi
Tyer Pressure-Rear 24psi
Rim Type-Front Steel rim 6"
Rim Type-Rear Steel rim 6"
ELECTRIC COMPONENTS
Controller Brush
Cooling Mode Natural air cooling
Rated Voltage 24V
Current Protection 19A
Undervoltage Protection 21±1V
DIMENSIONS
Endurance Mileage 5.27 KM
Seat Height        500mm/19.7in
Handlebar Height   695mm/27.4in
Turning Circle Diameter 2.2m
Wheel Base 680mm/26.7in
Ground Clearance 75mm/2.95in
Weight Capacity 50kg/110 lbs
Max Limp Angle 30°

Bike Size 1010×575×695mm(39.8*22.7*27.4in)
Packing Size 1020×570×500mm(40.2*22.4*19.9in)
Net Weight 39kg/86lbs
Shipping Weight 45kg/99lbs
Max Load 50kg/110lbs

Shipping Area

We ship to 48 Continental States in United States.

Warranty Policy

We warranty the products to be free of material defects in workmanship for the warranty period from the date your product is delivered. Damages on Arrival shall be notified WITHIN 3 BUSINESS DAY UPON DELIVERED. Motor and battery are covered to be free from manufacturer defect for three (3) month. Parts are covered under warranty to be free from manufacturer defects for one (1) month.

Assembly Guide

QUESTIONS & ANSWERS

Ask a Question
  • Is it street legal

    No, it is not street legal.

  • Does this quad have a reverse gear?

    No, it does not have a reverse gear.
